Hiquphon 20mm - 3/4 inch soft dome tweeter type OW I, OW II, OW3, OW4, the new OW3 and OW4 and more. Designed and produced in Denmark since 1983.


Go to content

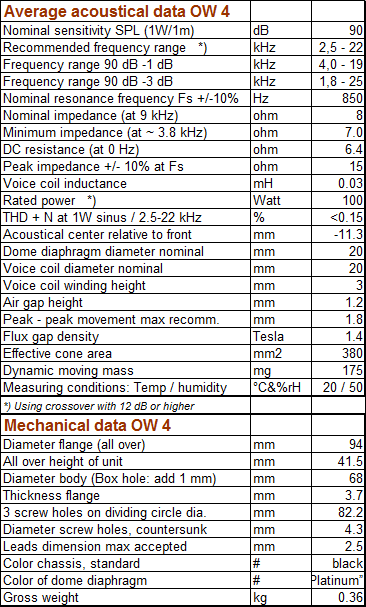

OW 4 data

Products > OW 4


Special features OW 4 :
___________________

Featuring
”Platinum” dome for unique design
Excellent frequency linearity 3 – 20 kHz and excellent phase linearity
Smooth roll-off at low and high frequencies

Low and well damped resonance frequency
Well controlled damped low frequency response, soft raising
Very broad-banded (2 kHz to 22 kHz, nominal –3 dB)

Fast transient response
Very low distortion
A-periodic damped moving system

Exponential phase-correction, semi horn-loaded
Saturated rounded magnet gap for low magnetic distortion
Perfect sealed housing

Heavy duty connectors for 2.5 mm lead wire, non-vibrating
Large soldering joints using large-surface copper plated PCB inside
Shock absorbing construction

Selected as
matched pairs within 0,5 dB between 2 kHz—20 kHz
Original data curves supplied as part of the package
Packed as two-in-a-box with original curves included, ready for resale.

Beautiful sound capabilities
Please observe that this tweeter is NOT magnetic shielded!

to music with love...

Read the full technical description of the OW tweeters
